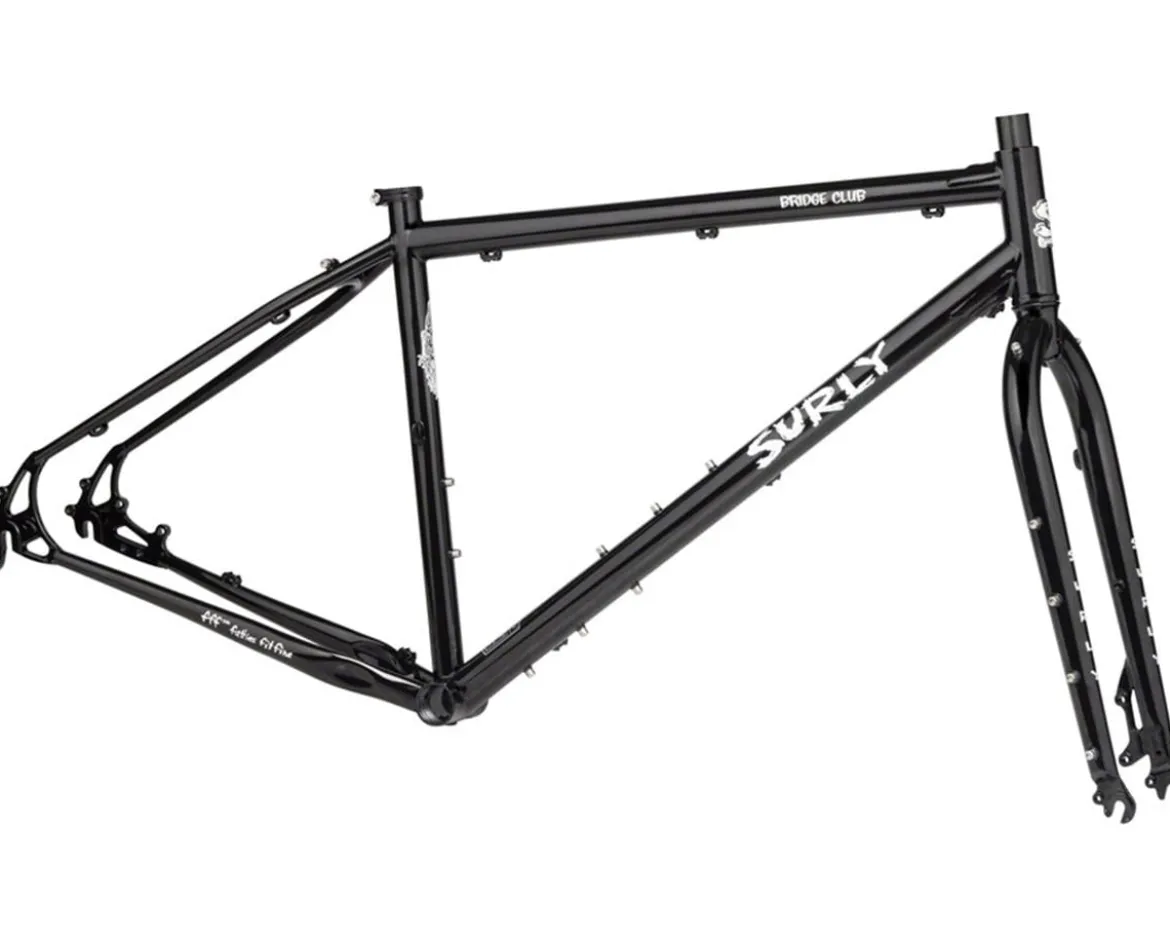

Surly Bridge Club Frameset (Trevor’s Closet Black) (XS)

Surly Bridge Club Frameset Description:

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

Features:

• 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork
• Rack, fender, and four sets of three-pack mounts

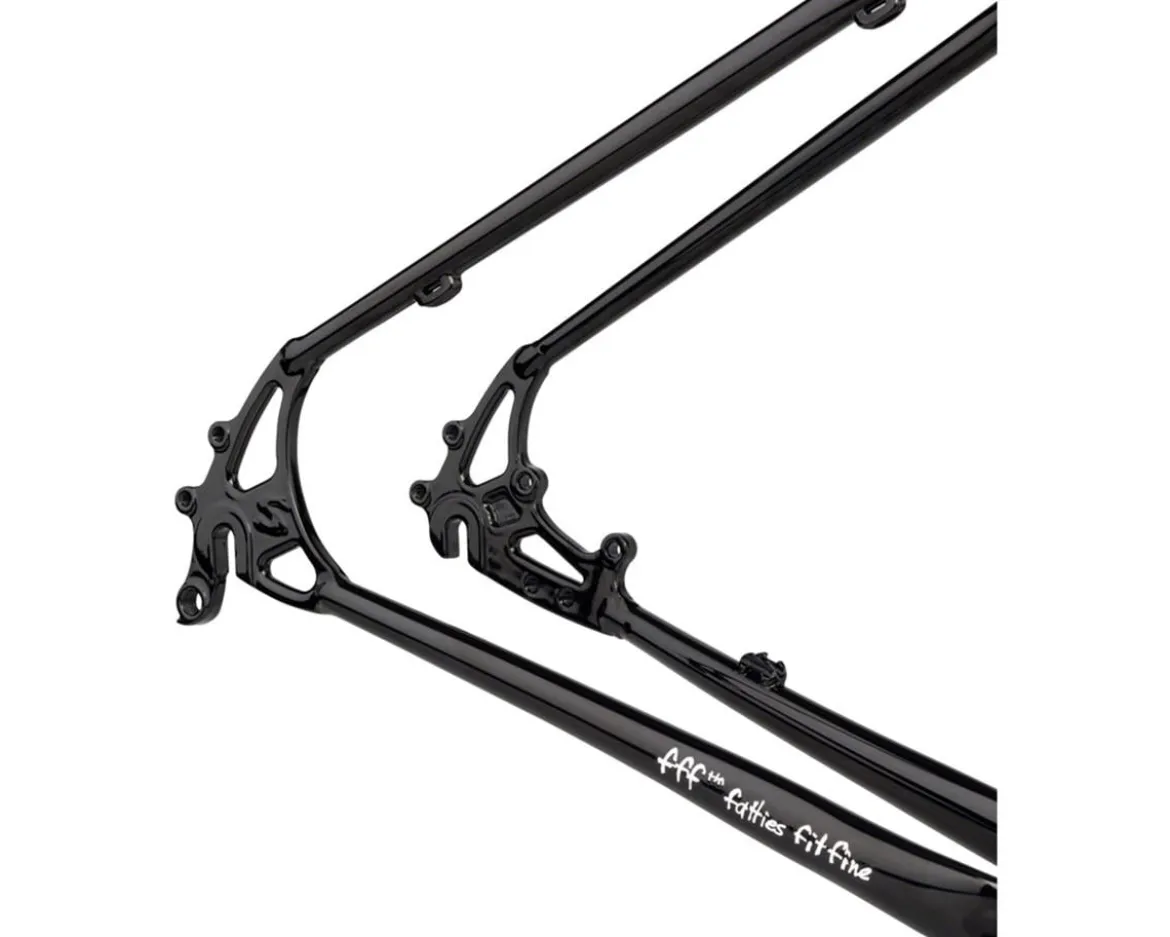

• Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
• Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8″ tires (27.5 x 2.6″ with fenders)

Specifications:

• Frame Material: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork Material: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Headset: Not Included
• Headset Size: EC34/28.6 (Upper), EC34/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Post Mount
• Rotor Compatibility: 203mm Max. (Front), 140 or 160mm (Rear)
• Axle Type: Thru Axle/Quick Release (Surly Gnot-Boost)
• Hub Spacing: QR x 100mm (Front), QR x 135mm or 10 x 141mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: 1x, 2x, 3x Mechanical
• Cable Routing: Internal
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S – XL)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2024
• Color: Trevor’s Closet Black
• Chainring Compatibility: 1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
• Tire Clearance:
  • 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders –
• Fork clearance:
  • 26 x 3.0″ (26 x 2.8″ with fenders) / 27.5 x 2.8″ (27.5 x 2.6″ with fenders) / 700c x 47 with or without fenders
