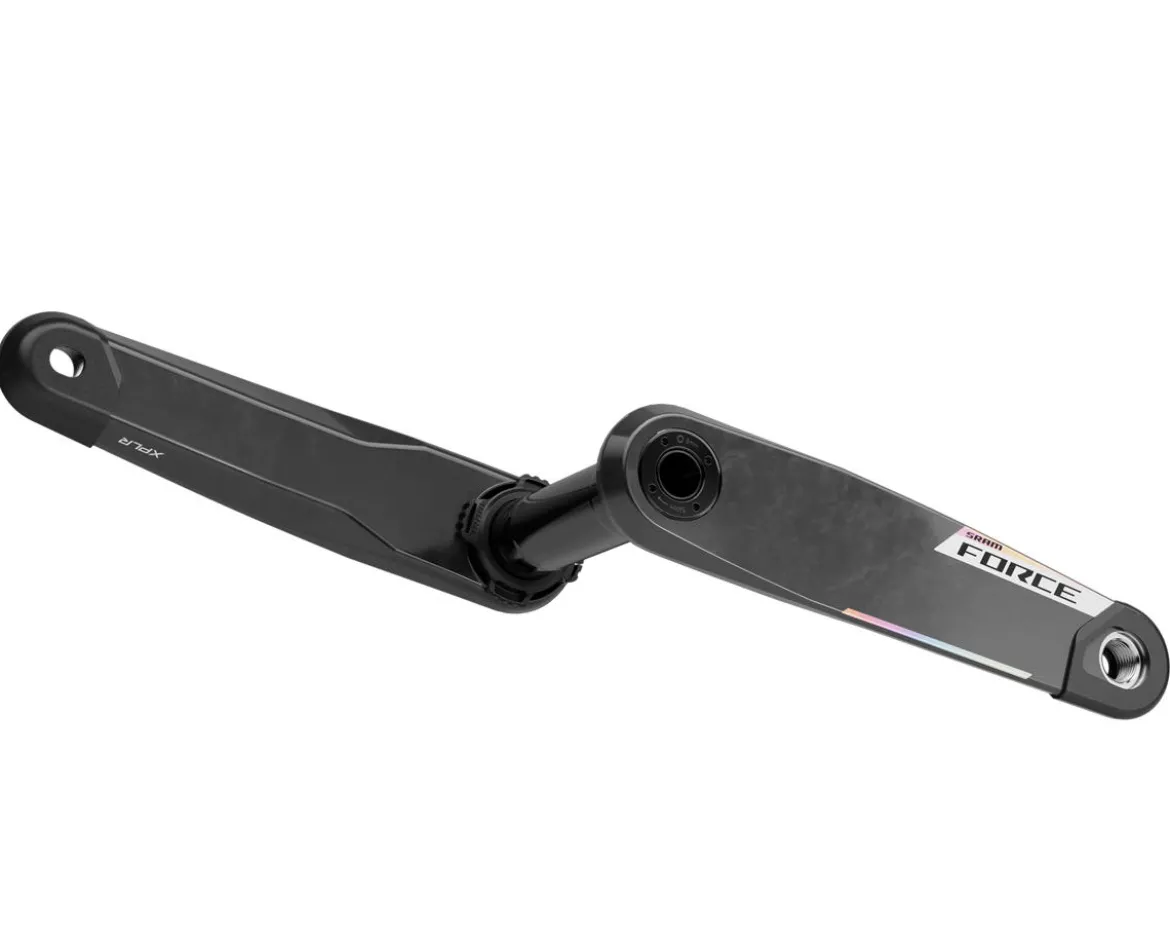

SRAM Force XPLR Crank Arm Assembly (Black) (DUB Wide) (165mm) (E1)

SRAM Force XPLR Crank Arm Assembly Description:

The SRAM Force XPLR Crank Arm Assembly is an impressive blend of beauty, customizability, and performance designed for bikes with an adventurous soul. Stiff and lightweight carbon fiber crankarms provide incredible efficiency and power transfer to the rest of the drivetrain, and are joined to SRAM’s proven DUB bottom bracket spindle that will allow a simpler installation of these cranks onto nearly any bicycle/frame. Additionally, those arms are designed to provide additional clearance so this crank arm assembly can be installed on virtually any wide tired drop handlebar bike and even on some hardtail mountain bikes (consult the manufacturer’s max chainring size to ensure proper fitment). Finally, these crank arms are available in several lengths and utilize SRAM’s 8-bolt direct mount chainring interface to enable a rider to easily customize the fit and gearing on the bike to suit their needs and long term performance goals.

Note: Chainrings are sold separately and are not included with Crankarm Assembly.

Features:

• Stiff carbon fiber crank arms efficiently transfer power from the pedals to the rest of the drivetrain
• Wider spacing between the arms clear the chainstays on virtually any wide-tired adventure, cyclocross, gravel, or any other drop bar bike
• 29mm diameter alloy DUB bottom bracket spindle adds durability, reduces weight, improves stiffness, and simplifies installation (bottom bracket cups and bearings sold separately)
• 8-Bolt chainring mount interface is optimized for use with SRAM’s 1x chainrings or the AXS Power Meter Spider (chainrings and the spider are sold separately)
• Available in lengths from 160mm to 175mm to make it easier for a rider to achieve an optimal fit

Specifications:

• Intended Discipline: Road/Gravel
• Spindle Diameter: 29mm (SRAM DUB)
• Bottom Bracket Included: No
• Pedal Spindle: 9/16″
• Chainrings Included: No
• Chainring BCD: –
• Chainring Mount: SRAM Direct Mount (8-Bolt)
• Chainline: 47.5mm
• Drive Type: 1x
• Speed Compatibility: 12 Speed | 13 Speed
• Chainring Material: –
• Crankarm Material: Carbon
• Color: Black
• Weight: –
