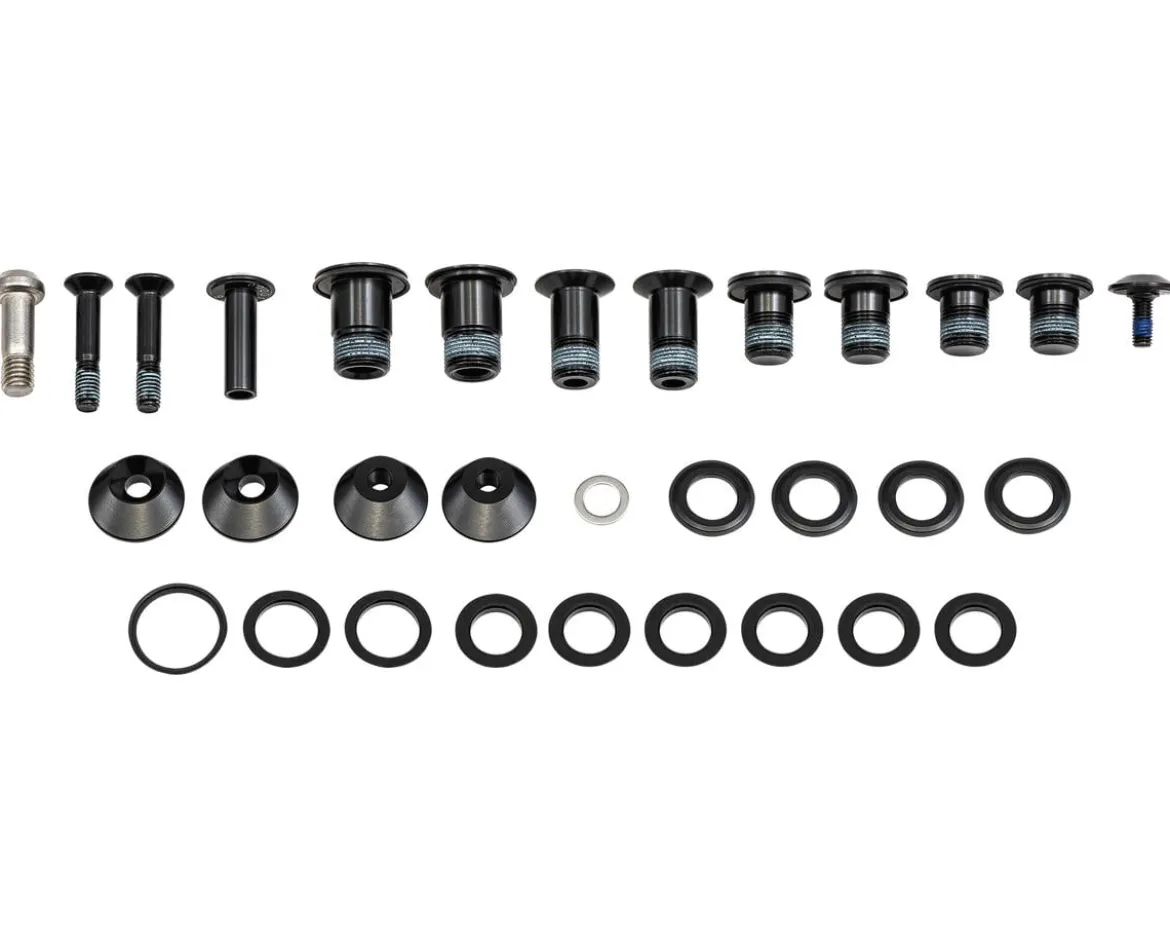

Specialized Levo SL Alloy Frame Suspension Pivot Bolt Kit (w/Pivot Spacers) (2023+)

Specialized Levo SL Alloy Frame Suspension Pivot Bolt Kit Description:

This Specialized Levo SL Alloy Frame Suspension Pivot Bolt Kit includes all bolts and spacers found installed on Specialized Turbo Levo SL Alloy full suspension frames manufactured between after 2024.

Features:

• Genuine Specialized replacement parts
• Suspension pivot bolt kit for 2023+ Levo SL Alloy (Gen.2) bikes with all bolts and spacers
• Kit also includes Geo Adjust Flip Chip and all spacers; refer to Schematic for detail
• Kit includes:
• (1) Main Pivot Bolt Driveside: Reverse Thread – 15mm W x 20mm L – Alloy – Torque: 210 in-lbf (24 Nm)
• (1) Main Pivot Bolt Non-Driveside: 15mm W x 20mm L – Alloy – Torque: 210 in-lbf (24 Nm)
• (2) Shock Link to Seat Tube Pivot Bolt: 12mm x 17.2mm L – Alloy – Torque: 180 in-lbf (20 Nm)
• (2) Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L – Alloy – Torque: 210 in-lbf (24 Nm)
• (2) Shock Link to Seatstay Pivot Bolt: 12mm x 30mm – Alloy – Torque: 180 in-lbf (20 Nm)
• (2) Horst Link Pivot Bolt: 6mm W x 32.5mm L – Steel – Torque: 90 in-lbf (10 Nm)
• (1) Forward Shock Eye Axle: 8mm W x 26.5mm L – Steel
• (1) Forward Shock Eye Bolt: 8mm W (M5 Thread) x 11mm L – Steel – Torque: 49 in-lbf (5.5 Nm)
• (1) Rear Shock Eye Bolt: 8mm W x 28mm L – Steel – Torque 180 in-lbf (20 Nm)

Specifications:

• Model Year Compatibility: 2024, 2025, 2026
